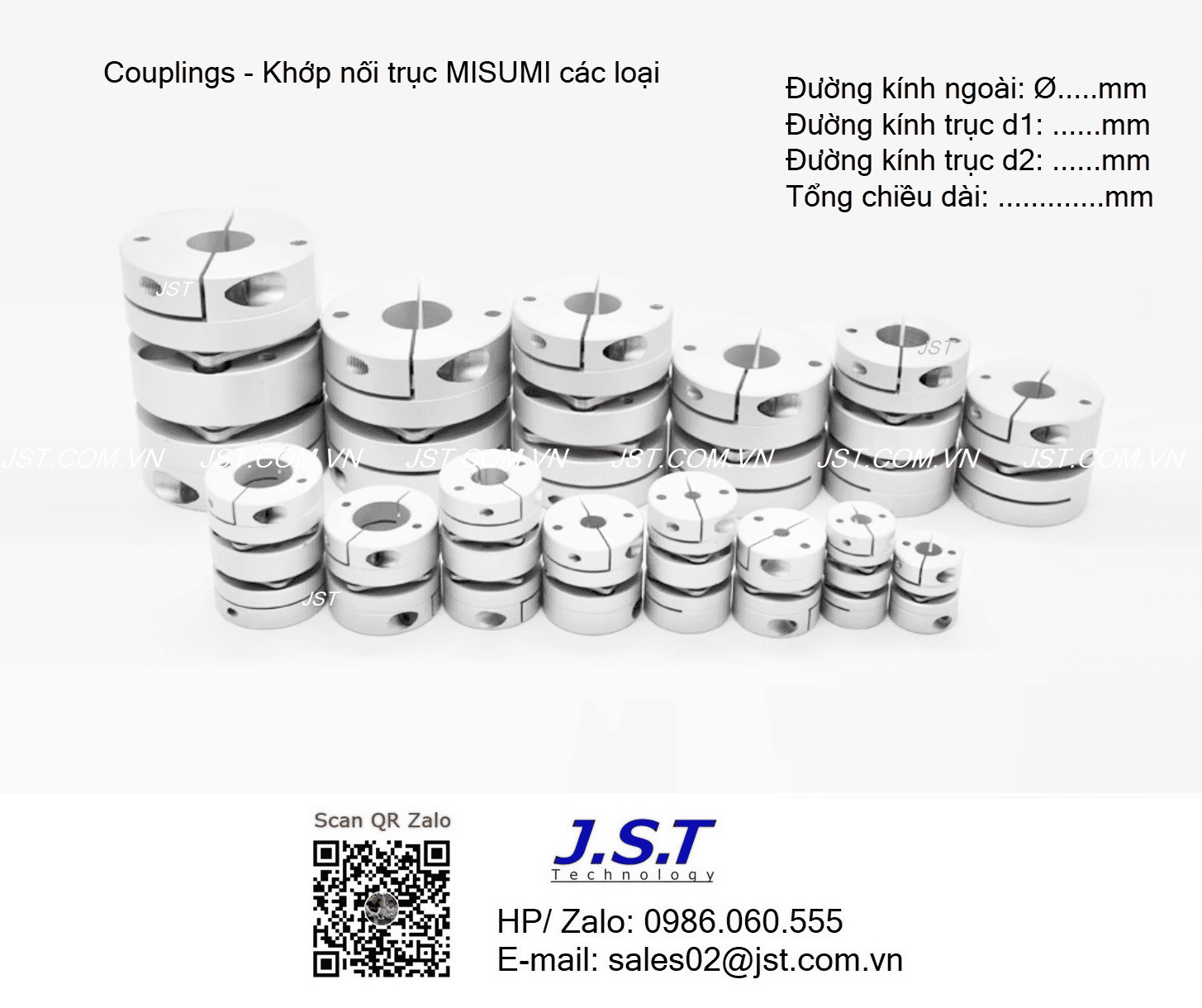

Disc Couplings C-SCPW21-8-8

Couplings - Khớp nối trục MISUMI chất lượng cao

Mã sản phẩm: C-SCPW34-8-8, C-SCPW34-8-10, C-SCPW34-8-12, C-SCPW34-8-14, C-SCPW34-8-16,..

Xuất xứ: Misumi, Made in Japan

Đường kính ngoài: Ø34

Đường kính trục d1: 8, 10, 12, 14, 16 (khách hàng chọn trục)

Đường kính trục d2: 8, 10, 12, 14, 16 (khách hàng chọn trục)

Tổng chiều dài: 44mm

Sản phẩm nhập khẩu, chất lượng cao, đơn giá: 990,000VND/cái chưa VAT, Có sẵn hàng.

Liên hệ hỗ trợ HP/ Zalo: 0986.060.555 E-mail: sales02@jst.com.vn

Thương lượng

No.	Description	Part no.	Maker	D (mm)	D1 (mm)	D2 (mm)	L (mm)
1	Disc Couplings Servo	SCPS16-3-3	Misumi	16	3	3	16.6
2	Disc Couplings Servo	SCPS16-3-4	Misumi	16	3	4	16.6
3	Disc Couplings Servo	SCPS16-3-5	Misumi	16	3	5	16.6
4	Disc Couplings Servo	SCPS16-3-6	Misumi	16	3	6	16.6
5	Disc Couplings Servo	SCPS16-4-4	Misumi	16	4	4	16.6
6	Disc Couplings Servo	SCPS16-4-5	Misumi	16	4	5	16.6
7	Disc Couplings Servo	SCPS16-4-6	Misumi	16	4	6	16.6
8	Disc Couplings Servo	SCPS16-5-5	Misumi	16	5	5	16.6
9	Disc Couplings Servo	SCPS16-5-6	Misumi	16	5	6	16.6
10	Disc Couplings Servo	SCPS21-4-4	Misumi	21	4	4	16.7
11	Disc Couplings Servo	SCPS21-4-5	Misumi	21	4	5	16.7
12	Disc Couplings Servo	SCPS21-4-6	Misumi	21	4	6	16.7
13	Disc Couplings Servo	SCPS21-4-7	Misumi	21	4	7	16.7
14	Disc Couplings Servo	SCPS21-4-8	Misumi	21	4	8	16.7
15	Disc Couplings Servo	SCPS21-4-9	Misumi	21	4	9	16.7
16	Disc Couplings Servo	SCPS21-5-5	Misumi	21	5	5	16.7
17	Disc Couplings Servo	SCPS21-5-6	Misumi	21	5	6	16.7
18	Disc Couplings Servo	SCPS21-5-7	Misumi	21	5	7	16.7
19	Disc Couplings Servo	SCPS21-5-8	Misumi	21	5	8	16.7
20	Disc Couplings Servo	SCPS21-5-9	Misumi	21	5	9	16.7
21	Disc Couplings Servo	SCPS21-6-6	Misumi	21	6	6	16.7
22	Disc Couplings Servo	SCPS21-6-7	Misumi	21	6	7	16.7
23	Disc Couplings Servo	SCPS21-6-8	Misumi	21	6	8	16.7
24	Disc Couplings Servo	SCPS21-6-9	Misumi	21	6	9	16.7
25	Disc Couplings Servo	SCPS21-7-7	Misumi	21	7	7	16.7
26	Disc Couplings Servo	SCPS21-7-8	Misumi	21	7	8	16.7
27	Disc Couplings Servo	SCPS21-7-9	Misumi	21	7	9	16.7
28	Disc Couplings Servo	SCPS21-8-8	Misumi	21	8	8	16.7
29	Disc Couplings Servo	SCPS21-8-9	Misumi	21	8	9	16.7
30	Disc Couplings Servo	SCPS21-9-9	Misumi	21	9	9	16.7
31	Disc Couplings Servo	SCPS21-[4,5,6,8,9]-[4,5,6,8,9]	Misumi	21			16.7
32	Disc Couplings Servo	SCPS28-[5,6,8,9,10]-[5,6,8,9,10]	Misumi	28			21.5
33	Disc Couplings Servo	SCPS34-[6,8,9,10,11,12,14]-[6,8,9,10,11,12,14]	Misumi	34			23.3
34	Disc Couplings Servo	SCPS46-[8,9,10,11,12,14,15,17,19]-[8,9,10,11,12,14,15,17,19]	Misumi	46			29.8
35	Disc Couplings Servo	SCPS55-[12,14,15,17,19,20,22,24,25]-[12,14,15,17,19,20,22,24,25]	Misumi	55			37.2
36	Disc Couplings Servo	SCPW16-[3,4,5,6]-[3,4,5,6]	Misumi	16
37	Disc Couplings Servo	SCPW21-[4,5,6,8,9]-[4,5,6,8,9]	Misumi	21
38	Disc Couplings Servo	SCPW28-[5,6,8,9,10]-[5,6,8,9,10]	Misumi	28
39	Disc Couplings Servo	SCPW34-[6,8,9,10,11,12,14]-[6,8,9,10,11,12,14]	Misumi	34
40	Disc Couplings Servo	SCPW46-[8,9,10,11,12,14,15,17,19]-[8,9,10,11,12,14,15,17,19]	Misumi	46
41	Disc Couplings Servo	SCPW55-[12,14,15,17,19,20,22,24,25]-[12,14,15,17,19,20,22,24,25]	Misumi	55

Jaw Couplings - Clamping Khớp nối trục Misumi Part number: CPJC20-BL-8-8 (Có thêm option lựa chọn thay đổi các loại đướng kính trục: 4, 5, 6, 6.35, 7, 8, 9, 9.35, 10, 11, 12)

CPJCK Series - Keywayed

CPJC Series - BL (Blue) Without keyway

Disc Couplings C-SCPW21-8-8
