Hệ thống truyền động servo bước hỗn hợp 2HSS86H là sự kết hợp hoàn hảo giữa công nghệ điều khiển servo trong truyền động bước kỹ thuật số. Sản phẩm áp dụng phương pháp điều khiển ba vòng điển hình (vòng lặp vị trí, vòng lặp tốc độ và vòng lặp hiện tại), tương thích với lợi thế kép của bước và servo , thích hợp cho Truyền động động cơ bước lai hai pha. là một sản phẩm điều khiển chuyển động rất tiết kiệm chi phí.
| Model: | 86J18118EC-1000-LS-YJ |
| Maker: | JMC |
| Đại lý chính hãng | CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP JST |
| Product name: | 86 hybrid stepping servo motor |
| Size: | 86MM * 86MM |
| Shaft Length: | 14*38MM |
| Keyway: | 5*25MM |
| Torque: | 8.5NM |
| Speed: | 0-1500RPM |
| Motor body length: | 150MM |
| Encoder: | 1000 Lines |
%20-%20Copy.jpg)
.jpg)
| Model | 2HSS86H-A-5/24 |
| Thương hiệu | JMC |
| Đại lý nhập khẩu và phân phối | CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP JST |
| Tên sản phẩm | Hybird Stepper Servo Driver |
| Điện áp AC | VAC24-75V |
| Điện áp DC | VDC30-110V |
| Dòng điện | 8A |
| Tốc độ truyền thông | 57,6Kb/giây |
| Tần số xung | 200KHZ |
| Cân nặng | 0,58kg |
| Kích thước | 150*97.5*53 |

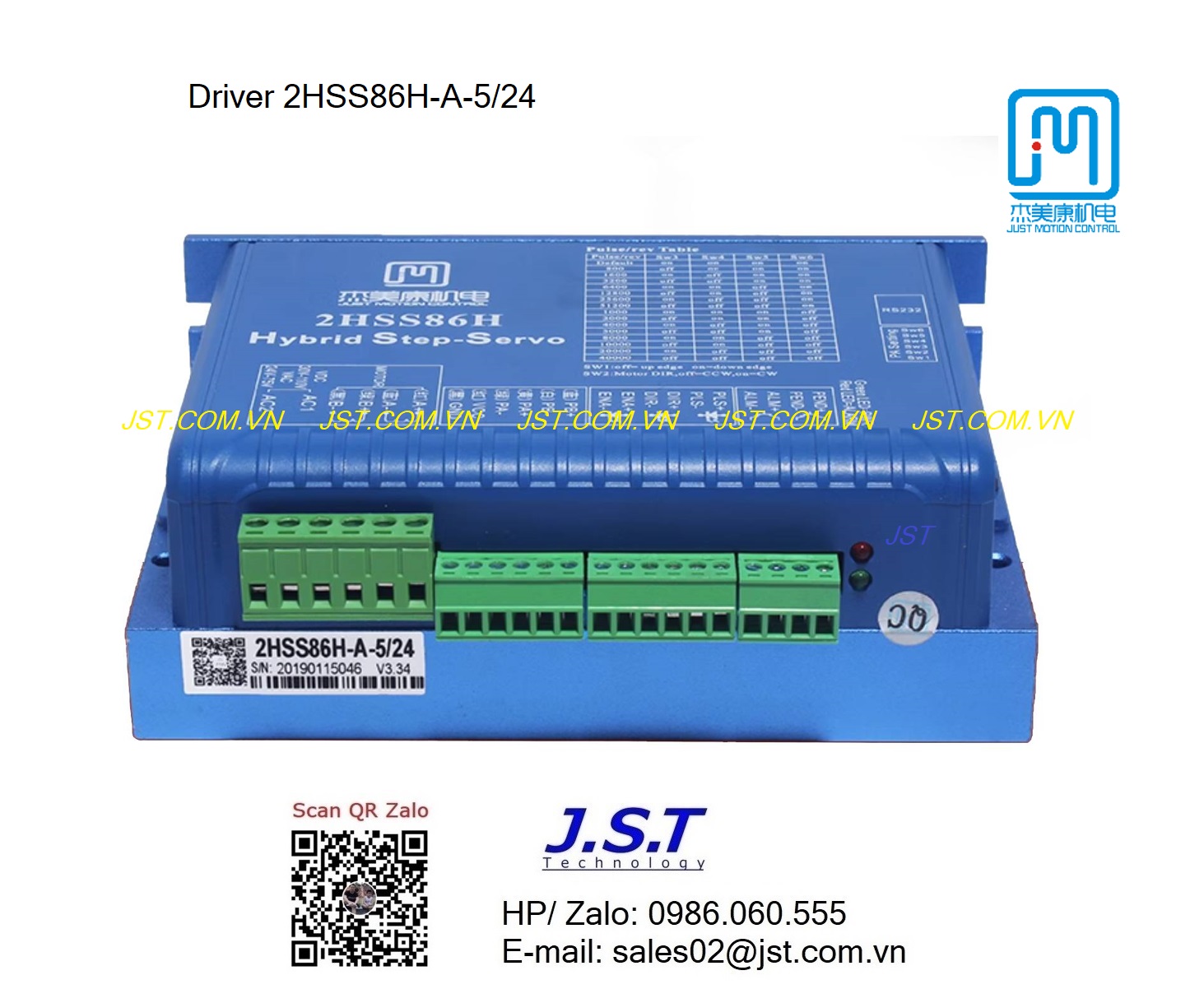

| Driver 2HSS86H-A-5/24 |
| Feature: |
| Full closed-loop control |
| The motor is equipped with a 1000-line encoder as standard |
| Close to 100% torque output |
| Subdivision setting range is 2-256 |
| High response, high speed |
| Optical isolation fault alarm output interface ALM |
| Current loop bandwidth: (-3dB) 2KHz (typical value) |
| Speed loop bandwidth: 500Hz (typical value) |
| Position loop bandwidth: 200Hz (typical value) |
| Usable RS232 serial port communication to download or change parameters |
| Overcurrent, 12T, overvoltage, undervoltage, overheating, overspeed, out-of-tolerance protection |
| Alarm clear input ENA |
SẢN PHẨM LIÊN QUAN:
Servo Motor 57J1880EC-1000-LS + Driver 2HSS57-A-5/24 + Encoder cable 3m
.jpg)
- Step Servo Motor + Driver JMC:
| 2 Phase Closed loop step servo driver and motor | Unit price | ||
| 1 | 2HSS57 | 2 phase nema 23 | 1,875,300 |
| 2 | 2HSS86H | 2 phase nema 34 | 2,455,750 |
| 3 | 2HSS858H | 2 phase nema 34 | 3,214,800 |
| 4 | 2HSS1106H | 2 phase nema 34 | 3,527,350 |
| 5 | 57J1854EC-1000 | 2 phase nema23/ 1.2N.m | 1,875,300 |
| 6 | 57J1880EC-1000 | 2 phase nema23/ 2N.m | 2,009,250 |
| 7 | 60J1887EC-1000 | 2 phase nema24/ 3N.m | 2,232,500 |
| 8 | 86J1880EC-1000 | 2 phase nema34/ 4.5N.m | 2,411,100 |
| 9 | 86J18118EC-1000 | 2 phase nema34/ 8.2N.m | 2,545,050 |
| 10 | 86J18156EC-1000 | 2 phase nema34/ 12N.m | 2,991,550 |
| 3 Phase Closed loop step servo driver and motor | |||
| 1 | 3HSS2208H-86 | 3 phase nema 34 | 4,197,100 |
| 2 | 3HSS2208H-110 | 3 phase nema 42 | 4,331,050 |
| 3 | 3HSS2208H-110-2500 | 3 phase nema 42 | 5,000,800 |
| 4 | 86J12126EC-1000 | 3 phase nema 34/ 6N.m | 2,768,300 |
| 5 | 86J12156EC-1000 | 3 phase nema 34/ 7.8N.m | 3,214,800 |
| 6 | 110J12160EC-1000 | 3 phase nema 42/ 16N.m | 4,331,050 |
| 7 | 110J12190EC-1000 | 3 phase nema 42/ 20N.m | 4,911,500 |
| Closed loop Driver+motor | |||
| 1 | 2HSS57+57J1854EC-1000 | 3,393,400 | |
| 2 | 2HSS57+57J1880EC-1000 | 3,393,400 | |
| 3 | 2HSS57+57J1880EC-1000-SC | 4,688,250 | |
| 4 | 2HSS86H+60J1887EC-1000 | 4,152,450 | |
| 5 | 2HSS86H+86J1880EC-1000 | 4,286,400 | |
| 6 | 2HSS86H+86J1895EC-1000 | 4,465,000 | |
| 7 | 2HSS86H+86J18118EC-1000 | 4,688,250 | |
| 8 | 2HSS86H-2000+86J18118EC-1000-SC | 6,161,700 | |
| 9 | 2HSS86H +86J18156EC-1000 | 5,179,400 | |
| 10 | 2HSS858H+86J18118EC-1000 | 5,134,750 | |
| 11 | 2HSS858+86J18156EC-1000 | 5,893,800 | |
| 12 | 3HSS2206+86J12126EC-100-60 | 6,965,400 | |
| 13 | 3HSS2206H+86J12156EC-1000 | 7,411,900 | |
| 14 | 3HSS2208H+86J12126EC-1000 | 6,965,400 | |
| 15 | 3HSS2208H+86J12156EC-1000 | 7,411,900 | |
| 16 | 3HSS2208H+110J12160EC-1000 | 8,662,100 | |
| 17 | 3HSS2208H+110J12190EC-1000 | 9,242,550 | |
| 18 | 3HSS2208H+130J12206EC-2500 | 12,055,500 | |
| 19 | 3HSS2208H+130J122256EC-2500 | 12,948,500 | |
- Step Driver JMC
| 2 Phase | Unit price | ||
| 1 | 2DM415 | nema17 | 888,300 |
| 2 | 2DM420 | nama17 | 972,900 |
| 3 | 2DM442 | nama17 | 1,015,200 |
| 4 | 2DM542 | nema 23 | 1,184,400 |
| 5 | 2DM556 | nema 23 /1.4-5.6A/DC24-60V | 1,522,800 |
| 6 | 2DM556-RC | nema23 | 3,384,000 |
| 7 | 2DM860H | nema 34 /1.8A-8.4A/AC18-80V &DC24-110V |
1,776,600 |
| 8 | 2DM2280 | nema 42 /2.0-8.0A/AC80-220V | 3,468,600 |
| 3 Phase | Unit price | ||
| 1 | 3DM783 | 1.8A-8.3A/DC24-60V | 1,522,800 |
| 2 | 3DM860 | 1,692,000 | |
| 3 | 3DM3422 | 2,707,200 | |
| 4 | 3DM2080 | 2.0A-8.0A/AC80-220V | 3,722,400 |
| 5 | 3DM3722 | 1.2-7.0A/AC80-220V | 3,722,400 |
- Stepping Motor JMC:
| No. | Model | Description |
| 1 | SM57H2A106-2P | 2 phase Step Motor Nema 2 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 2.65 N.m Weight: 1.25kg |
| 2 | 60J1887-440 | 2 phase Step Motor Nema Step Angle: 1.8 Insulation Class: B No of motor leads: 4 Holding Torque: 3.0 N.m Weight: 1.4kg |
| 3 | 42J1840-408 | 2 phaseStep Motor Nema 17 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 or 8 Holding Torque: 0.32 N.m Weight: 0.24kg |
| 4 | 42J1848-810 | 2 phase Step Motor Nema 1 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 or 8 Holding Torque: 0.34 N.m Weight: 0.34kg |
| 5 | 57J1854-828 | 2 phase Step Motor Nema 2 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 0.9 N.m Weight: 0.6kg |
| 6 | 57J1876-447 | 2 phase Step Motor Nema 2 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 0.9 N.m Weight: 0.6kg |
| 7 | 57J1880-450 | 2 phase Step Motor Nema 2 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 0.9 N.m Weight: 0.6kg |
| 8 | 57J1880-830 | 2 phase Step Motor Nema 2 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 2.0 N.m Weight: 1.15kg |
| 9 | 42J1825-404 | 2 phase Step Motor Nema 1 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 or 8 Holding Torque: 0.17 N.m Weight: 0.15kg |
| 10 | 86J18156-845 | 2 phase Step Motor Nema 34 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 12.0 N.m Weight: 5.4kg |
| 11 | 110J18115-460 | 2 phaseStep Motor Nema 42 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 Holding Torque: 12 N.m Weight: 5.8kg |
| 12 | 110J18150-460 | 2 phaseStep Motor Nema 42 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 Holding Torque: 20 N.m Weight: 8.4kg |
| 13 | 110J18165-460 | 2 phaseStep Motor Nema 42 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 Holding Torque: 2.4 N.m Weight: 9.5kg |
| 14 | 57J1250-635 | 3 phase Step Motor Nema 23 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 0.6 N.m Weight: 0.6kg |
| 15 | 57J1256-658 | 3 phase Step Motor Nema 23 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 0.9 N.m Weight: 0.72kg |
| 16 | 86J1865-828 | 2 phase Step Motor Nema 34 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 3.5 N.m Weight: 2.0kg |
| 17 | 86J1880-842 | 2 phase Step Motor Nema 34 Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 4.5 N.m Weight: 2.3kg |
| 18 | 86J18101-450 | 2 phase Step Motor Nema 34 Step Angle: 1.8 Insulation Class: B No of motor leads: 4 Holding Torque: 6.0 N.m Weight: 3.25kg |
| 19 | 86J18118-842 | 2 phase Step Motor Nema Step Angle: 1.8 Insulation Class: B No of motor leads: 8 Holding Torque: 8.5 N.m Weight: 3.8kg |
| 20 | 110J12185-36+A230 | 3 phase Step Motor Nema 42 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 16 N.m Weight: 8.0kg |
| 21 | 110J12220-360 | 3 phase Step Motor Nema 42 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 20 N.m Weight: 10kg |
| 22 | 130J12188-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 24 N.m Weight: 14kg |
| 23 | 130J12220-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 28 N.m Weight: 17kg |
| 24 | 130J12252-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 35 N.m Weight: 19kg |
| 25 | 130J122280-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 50 N.m Weight: 20.5kg |
| 26 | 57J1276-658 | 3 phase Step Motor Nema 23 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 1.3 N.m Weight: 1.1kg |
| 27 | 57J1285-658 | 3 phase Step Motor Nema 23 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 1.5 N.m Weight: 1.2kg |
| 28 | 86J1270-650 | 3 phase Step Motor Nema 34 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 2.2 N.m Weight: 1.7kg |
| 29 | 86J12103-650 | 3 phase Step Motor Nema 34 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 4.5 N.m Weight: 2.85kg |
| 30 | 86J12126-623 | 3 phase Step Motor Nema 34 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 6.78 N.m Weight: 4.0kg |
| 31 | 110J12161-360 | 3 phase Step Motor Nema 42 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque:12 N.m Weight: 6.2kg |
| 32 | 110J12185-360 | 3 phase Step Motor Nema 42 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 16 N.m Weight: 8.0kg |
| 33 | 110J12220-360 | 3 phase Step Motor Nema 42 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 20 N.m Weight: 10kg |
| 34 | 130J12188-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 24 N.m Weight: 14kg |
| 35 | 130J12220-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 28 N.m Weight: 17kg |
| 36 | 130J12252-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 35 N.m Weight: 19kg |
| 37 | 130J122280-368 | 3 phase Step Motor Nema 51 Step Angle: 1.2 degree Insulation Class: B No of motor leads: 6 Holding Torque: 50 N.m Weight: 20.5kg |
