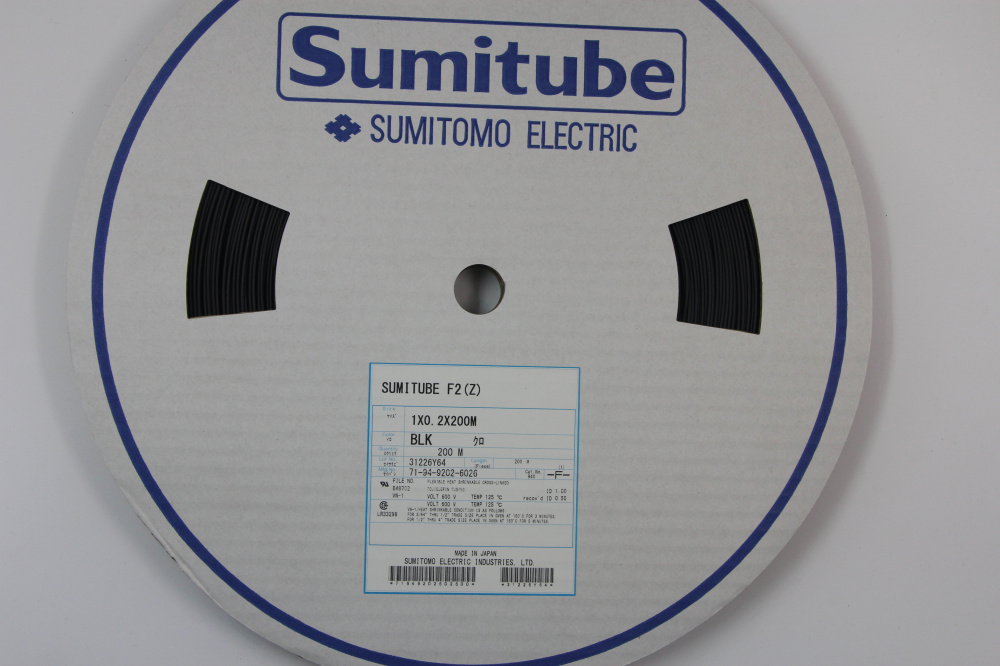

Ống co vì nhiệt Sumitumo Sumitube Japan

Hãng sản xuất :

SUMITOMO/ SUMITUBE/ IRRAXTUBE

Sumitomo Electric Polymer SUMITUBE™ F2 (Z).

Material : Irradiated cross-linked flexible flame-retarded polyolefin
Shrink temperature : min. 90^oC
Shrink ratio : Radial change: min. 50%
Continuous operating temperature : -55 to 125^oC

Specifications/Approvals: UL224, Rating temperature: 125℃, Rating voltage: 600V, Flammability: VW-1 Electrical Appliance and Material Safety Law (Japan) Upper operating temperature test 125℃ temporary. Printing: 125^oC VW-1 SUMITOMO-K SUMITUBE F2 (Z) CAT 940 CSA 125^oC VW-1 -F

Liên hệ hỗ trợ Mobile/ Zalo: 0986.060.555 E-mail: sales02@jst.com.vn

Thương lượng

Sumitomo Electric Polymer SUMITUBE F2(Z).
Có sẵn nhiều kích cỡ theo đường kính trong trước khi co nhiệt từ Ø1mm đến Ø50mm.
Ống chịu nhiệt linh hoạt tuân thủ Luật An toàn Vật liệu và Thiết bị Điện.
Linh hoạt, chống cháy (PBDE / PBB-free)
Ống co không chứa khí clo được chỉ định cụ thể là không độc hại với môi trường.

Model	Size	Pack Packaging Quantity	Color	Overall Length	Size Before Shrinking (mm)		Size After Shrinking (mm)		Weight (g/m)
Model	Size	Pack Packaging Quantity	Color	Overall Length	Internal Diameter	Tube wall thickness	Internal Diameter (maximum value)	Tube wall thickness	Weight (g/m)
SMTFZ	1.5	5P (5 pieces)	Black	1 m	2.00±0.30	0.20	0.75	0.36	1.7
	2				2.50±0.30	0.20	1.00	0.44	2.4
	3				3.50±0.30	0.25	1.50		3.4
	4				4.50±0.30		2.00		4.2
	5				5.40±0.30		2.50	0.56	6.8
	6				6.40±0.40		3.00		7.8
	8				8.40±0.40		4.00		10.0
	10				10.40±0.40		5.00		11.7
	12				12.40±0.40		6.00		14.7
	14				14.50±0.40	0.30	7.00	0.69	22.1
	16				16.80±0.50	0.30	8.00	0.69	24.9
	18				18.70±0.50	0.35	9.00	0.77	31.0
	20				21.20±0.60	0.35	10.00	0.77	31.7

IRRAXTUBE is widely used in various industrial fields for thermal protection, mechanical protection, and chemical protection of electrical wires and harnesses and for other general purposes.

IRRAXTUBE is a heat-resistant tube that takes advantage of heat/chemical resistance of a plastic enhanced by electron beam irradiation. Made mainly from raw materials such as polyolefin, fluorinated polymer, or thermoplastic elastomer.

IRRAXTAPE is a heat-resistant tape with adhesive that enhanced heat resistance by electron beam irradiation, made mainly from raw materials such as polyvinyl chloride.

IRRAX™TUBE A Thông dụng: A/B/F2/F2(UL)/V2(300V)/RP3/B8/ER2/ NHR/ NHR4/FE2/VZL/V2(600V)
